TekSIP Route Server is an SIP Redirect Server
(Based on RFC 3261) runs under Windows (XP, Vista, Windows 7, 2003-2008 Server) and can be used as a routing server for a SIP network. TekSIP Route Server can be deployed as a routing server for Local Number Portability (LNP) or Mobile Number Portability (MNP) systems.
TekSIP Route Server can be run with built-in Microsoft Access database or an external Microsoft SQL Server database. All Microsoft SQL Server editions are supported. TekSIP Route Server also supports ENUM.
TekSIP Route Server returns 302 responses for located SIP destinations. If a route can not be located for an incoming SIP call, a 404 response will be returned.
- Supports features described in RFC 3261.
- Logs system messages, errors and session information to a log file.
- All parameters can be configured through management GUI or HTTP interface.
- You can define a default route or prefix based routes for particular SIP endpoints.
- Stores configuration data in the installation directory (.ini file).
- Supports Access (MDB) and Microsoft SQL Server.
- Supports ENUM.
- Quick and easy installation.
- Runs as a Windows service.
- A Windows system with at least 2048 MBytes of RAM.
- Microsoft.NET Framework v2.0.50727 (Min.)
To install TekSIP Route Server, extract contents of TSRServer.zip to a temporary directory, run Setup.exe from the distribution. Uninstall previous version if you upgrade from an earlier version.
To uninstall TSRServer, double click TSRServer icon at "Add or Remove Programs" from Control Panel.
Please see Installation Manual which can be found in the application directory for configuration details and operation;
-
Run TekSIP Route Server Manager from Start Menu / Program Files / TekSIP Route Server.
-
You can define resource records or routes for a particular E.164 number or a prefix in "Routing" tab. Enter a phone number prefix to bottom leftmost textbox and click "Add Route" button.
You can have also a default route entry. TekSIP Route Server chooses longest match prefix route. If any match can not be found default route is chosen if exists. Enter a prefix and click "Add Route" button to add a new routing entry. You must edit at least URI entry to commit changes.
-
Select IP address to be listened on the settings tab. Logging is optional. TSRServer can cache query results for a period of time defined in Cache Refresh Period parameter. Check if you wish to enable this feature. TSRServer can also perform ENUM queries for undefined number/prefiexes. If you save or apply the configurations changes, they take effect immediately.

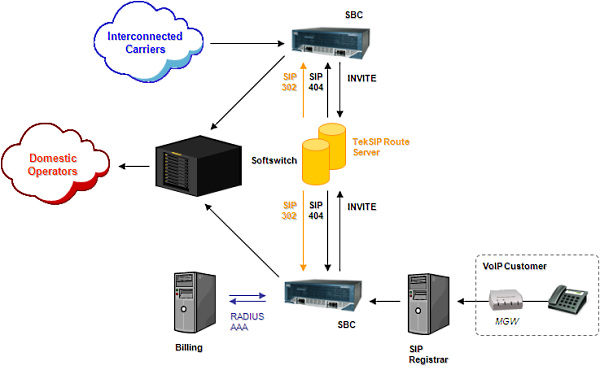

TekSIP Route Server can be deployed as route server for Local or Mobile Number Portability applications. TekSIP Route Server is located between session border controller which provides interface to interconnecting carriers and end users, and operator’s NGN network. Calls are routed TekSIP Route Server first, and if the number is ported to another operator a SIP 302 response which contains prefix of the host operator of the ported number will be sent to originating SBC.
If called number is not ported, NP Server will reply with a SIP 302 response which contains prefix of the home operator of the called number will be sent to originating SBC. SBC will route the call to the number specified in Contact header of SIP 302 response.
Typical SBC configuration is shown below (Cisco):
dial-peer voice 10 voip description -- Outgoing 1 -- destination-pattern 05T session protocol sipv2 preference 1 session target ipv4:Dial-Peer 10 forwards calls to TekSIP Route Server and Dial Peer 20 routes calls to Softswitch according to the TekSIP Route Server response.:5060 ! dial-peer voice 20 voip description -- Outgoing 2 -- ! for Carriers ! destination-pattern T destination-pattern .+ session protocol sipv2 session target ipv4: :5060 !
Freeware edition allows maximum 4 digits length matching. You can buy unlimited edition for 340 USD. You will receive your Registration key via e-mail with installation instructions after making payment. Issued registration keys are valid for the latest version of TSRServer so please make sure that you have installed latest version of TSRServer. You can purchase TSR Server from Yasin KAPLAN Web Store.
